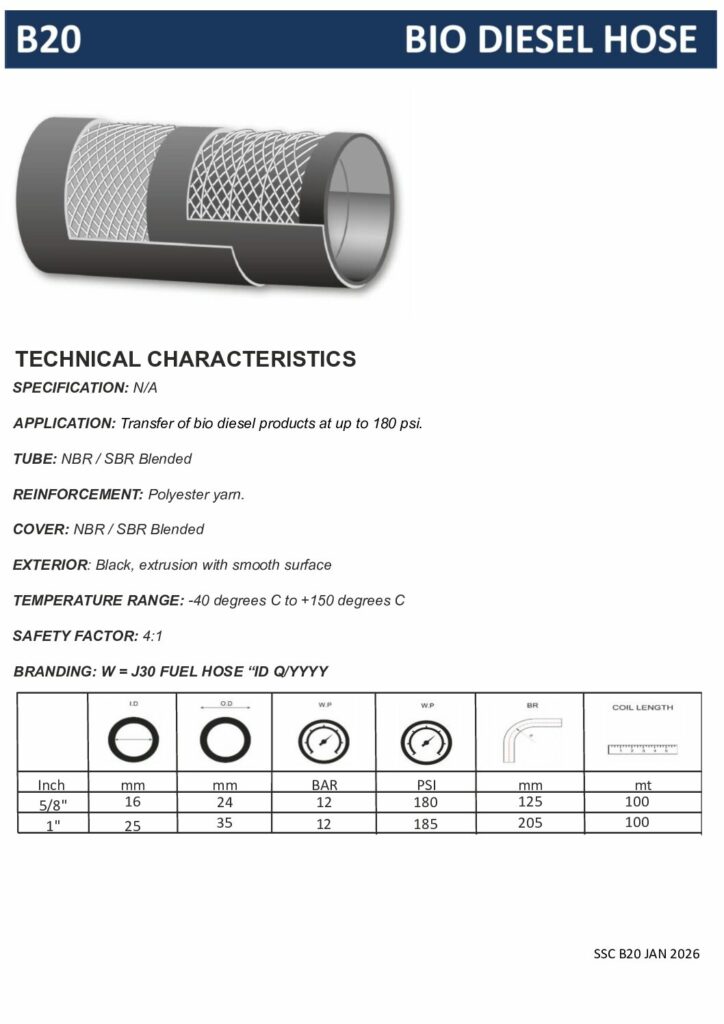

B20 Bio Diesel Hose
SKU: B20
Technical Characteristics
Specification
N/A
Application
Transfer of bio diesel products at up to 180 PSI
Tube
NBR / SBR Blended
Reinforcement
Polyester Yarn
Cover
NBR / SBR Blended. Black, extrusion with smooth surface
Temperature Range
-40°C to +150°C
Safety Factor
4:1
Branding
W = J30 FUEL HOSE “ID Q/YYYY
Sizes
| Inch | Inner Diameter (ID) (mm)  | Outer Diameter (OD) (mm)  | Working Pressure (BAR)  | Working Pressure (PSI) | Bend Radius (BR) (mm)  | Coil Length (Metres)  |
|---|---|---|---|---|---|---|
| 5/8" | 16 | 24 | 12 | 180 | 125 | 100 |
| 1" | 25 | 35 | 12 | 185 | 205 | 100 |
Conversions shown are approximate and rounded.
