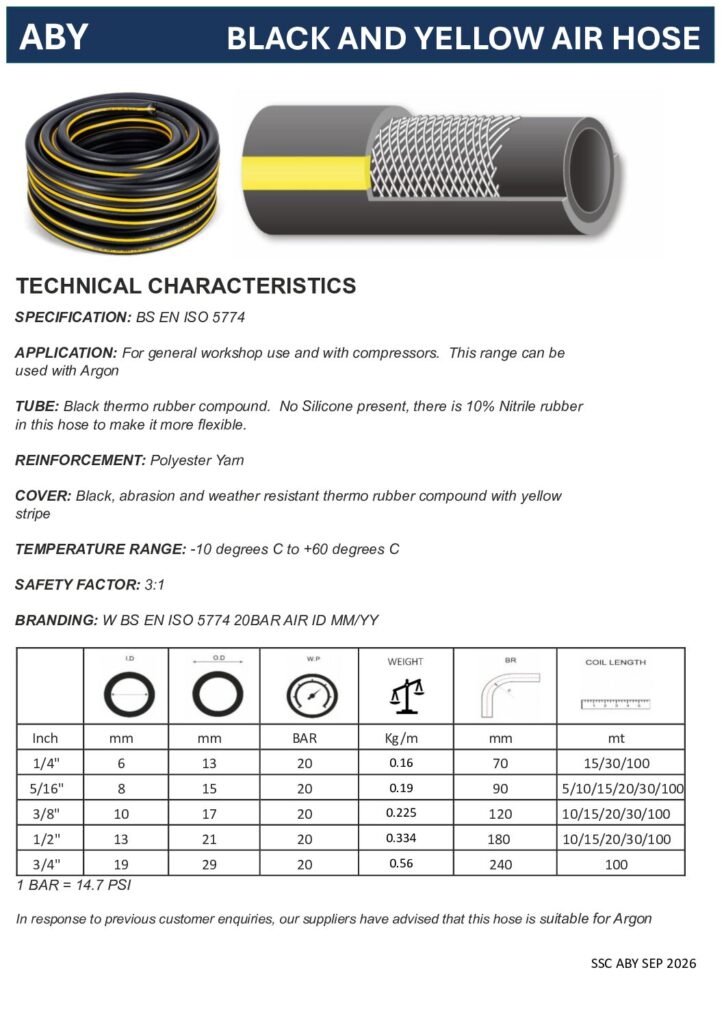

Black & Yellow Air Hose
SKU: ABY
Technical Characteristics
Specification
BS EN ISO 5774
Application
For general workshop use and with compressors. This range can be used with Argon
Tube
Black thermo rubber compound. No Silicone present, there is 10% Nitrile rubber in this hose to make it more flexible.
Reinforcement
Polyester Yarn
Cover
Black, abrasion and weather resistant thermo rubber compound with yellow stripe
Temperature Range
-10°C to +60°C
Safety Factor
3:1
Branding
W BS EN ISO 5774 20BAR AIR ID MM/YY
Sizes
| Inch | Inner Diameter (ID) (mm)  | Outer Diameter (OD) (mm)  | Working Pressure (BAR)  | Working Pressure (PSI) | Bend Radius (BR) (mm)  | Coil Length (Metres)  |
|---|---|---|---|---|---|---|
| 1/4" | 6 | 13 | 20 | 300 | 70 | 15, 30, 100 |
| 5/16" | 8 | 15 | 20 | 300 | 90 | 5, 10, 15, 20, 30, 100 |
| 3/8" | 10 | 17 | 20 | 300 | 120 | 10, 15, 20, 30, 100 |
| 1/2" | 13 | 21 | 20 | 300 | 180 | 10, 15, 20, 30, 100 |
| 3/4" | 19 | 29 | 20 | 300 | 240 | 100 |
Conversions shown are approximate and rounded.
