Push In Fittings
SKU: PF

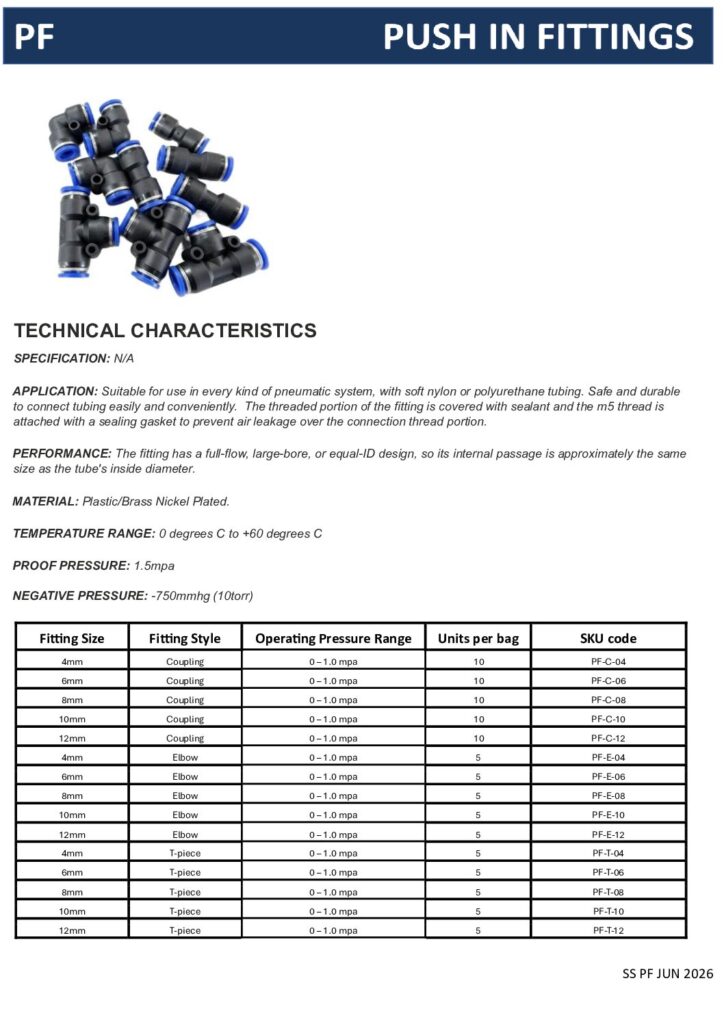

Technical Characteristics
Application
Suitable for use in every kind of pneumatic system, with soft nylon or polyurethane tubing. Safe and durable to connect tubing easily and conveniently. The threaded portion of the fitting is covered with sealant and the m5 thread is attached with a sealing gasket to prevent air leakage over the connection thread portion.
The fitting has a full-flow, large-bore, or equal-ID design, so its internal passage is approximately the same size as the tube's inside diameter.
Working Pressure
For operating pressure see sizes table
Material
Plastic/Brass Nickel Plated
Colour
Black / Grey / Blue
Additional Specification
- Proof Pressure: 1.5mpa
- Negative Pressure: -750mmHg (10 torr)
Temperature Range
0°C to +60°C
| Fitting Size | Fitting Style | Operating Pressure Range | Units per bag | SKU code |
| 4mm | Coupling | 0 - 1.0 mpa | 10 | PF-C-04 |
| 6mm | Coupling | 0 - 1.0 mpa | 10 | PF-C-06 |
| 8mm | Coupling | 0 - 1.0 mpa | 10 | PF-C-08 |
| 10mm | Coupling | 0 - 1.0 mpa | 10 | PF-C-10 |
| 12mm | Coupling | 0 - 1.0 mpa | 10 | PF-C-12 |
| 4mm | Elbow | 0 - 1.0 mpa | 5 | PF-E-04 |
| 6mm | Elbow | 0 - 1.0 mpa | 5 | PF-E-06 |
| 8mm | Elbow | 0 - 1.0 mpa | 5 | PF-E-08 |
| 10mm | Elbow | 0 - 1.0 mpa | 5 | PF-E-10 |
| 12mm | Elbow | 0 - 1.0 mpa | 5 | PF-E-12 |
| 4mm | T-piece | 0 - 1.0 mpa | 5 | PF-T-04 |
| 6mm | T-piece | 0 - 1.0 mpa | 5 | PF-T-06 |
| 8mm | T-piece | 0 - 1.0 mpa | 5 | PF-T-08 |
| 10mm | T-piece | 0 - 1.0 mpa | 5 | PF-T-10 |
| 12mm | T-piece | 0 - 1.0 mpa | 5 | PF-T-12 |
Conversions shown are approximate and rounded.
Primary Item Packaging
Plastic bag
