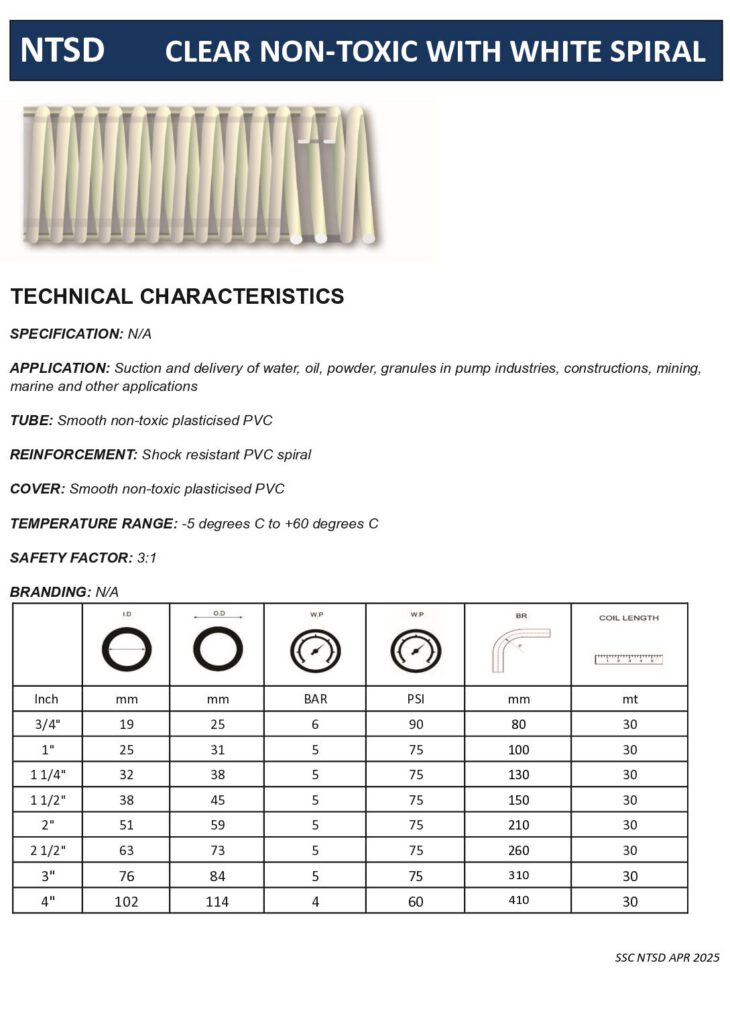

Suction & Delivery Clear White Spiral
SKU: NTSD
Technical Characteristics
Application
Suction and delivery of water, oil, powder, granules in pump industries, constructions, mining, marine and other applications
Tube
Smooth non-toxic plasticised PVC
Reinforcement
Shock resistant PVC spiral
Cover
Smooth non-toxic plasticised PVC
Temperature Range
-5°C to +60°C
Safety Factor
3:1
Sizes
| Inch | Inner Diameter (ID) (mm)  | Outer Diameter (OD) (mm)  | Working Pressure (BAR)  | Working Pressure (PSI) | Bend Radius (BR) (mm)  | Coil Length (Metres)  |
|---|---|---|---|---|---|---|
| 3/4" | 19 | 25 | 6 | 90 | 80 | 30 |
| 1" | 25 | 31 | 5 | 75 | 100 | 30 |
| 1 1/4" | 32 | 38 | 5 | 75 | 130 | 30 |
| 1 1/2" | 38 | 45 | 5 | 75 | 150 | 30 |
| 2" | 51 | 59 | 5 | 75 | 210 | 30 |
| 2 1/2" | 63 | 73 | 5 | 75 | 260 | 30 |
| 3" | 76 | 84 | 5 | 75 | 310 | 30 |
| 4" | 102 | 114 | 4 | 60 | 410 | 30 |
Conversions shown are approximate and rounded.
