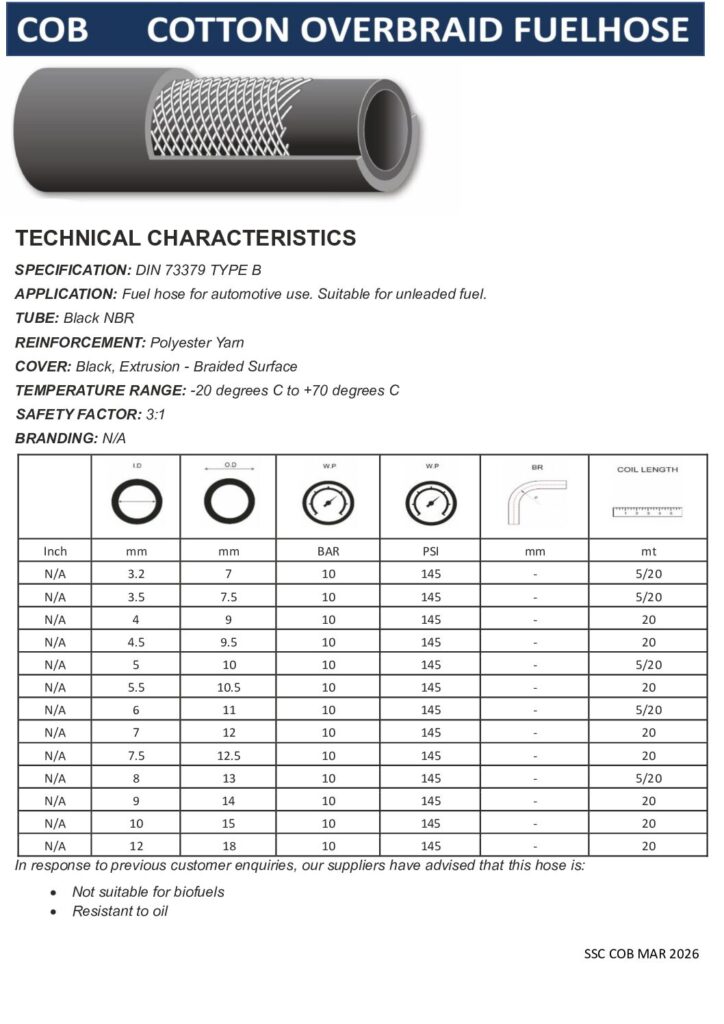

Cotton Overbraid Fuel Hose
SKU: COB
Technical Characteristics
Specification
DIN 73379 TYPE B
Application
Fuel hose for automotive use. Suitable for unleaded fuel.
Tube
Black NBR
Reinforcement
Polyester Yarn
Cover
Black, Extrusion - Braided Surface
Temperature Range
-20°C to +70°C
Safety Factor
3:1
Sizes
| Inch | Inner Diameter (ID) (mm)  | Outer Diameter (OD) (mm)  | Working Pressure (BAR)  | Working Pressure (PSI) | Bend Radius (BR) (mm)  | Coil Length (Metres)  |
|---|---|---|---|---|---|---|
| " | 3.2 | 7 | 10 | 145 | 5, 20 | |
| " | 3.5 | 7.5 | 10 | 145 | 5, 20 | |
| " | 4 | 9 | 10 | 145 | 20 | |
| " | 4.5 | 9.5 | 10 | 145 | 20 | |
| " | 5 | 10 | 10 | 145 | 5, 20 | |
| " | 5.5 | 10.5 | 10 | 145 | 20 | |
| " | 6 | 11 | 10 | 145 | 5, 20 | |
| " | 7 | 12 | 10 | 145 | 20 | |
| " | 7.5 | 12.5 | 10 | 145 | 20 | |
| " | 8 | 13 | 10 | 145 | 5, 20 | |
| " | 9 | 14 | 10 | 145 | 20 | |
| " | 10 | 15 | 10 | 145 | 20 | |
| " | 12 | 18 | 10 | 145 | 20 |
Conversions shown are approximate and rounded.
Answers to Frequently Asked Questions
- Not suitable for biofuels
