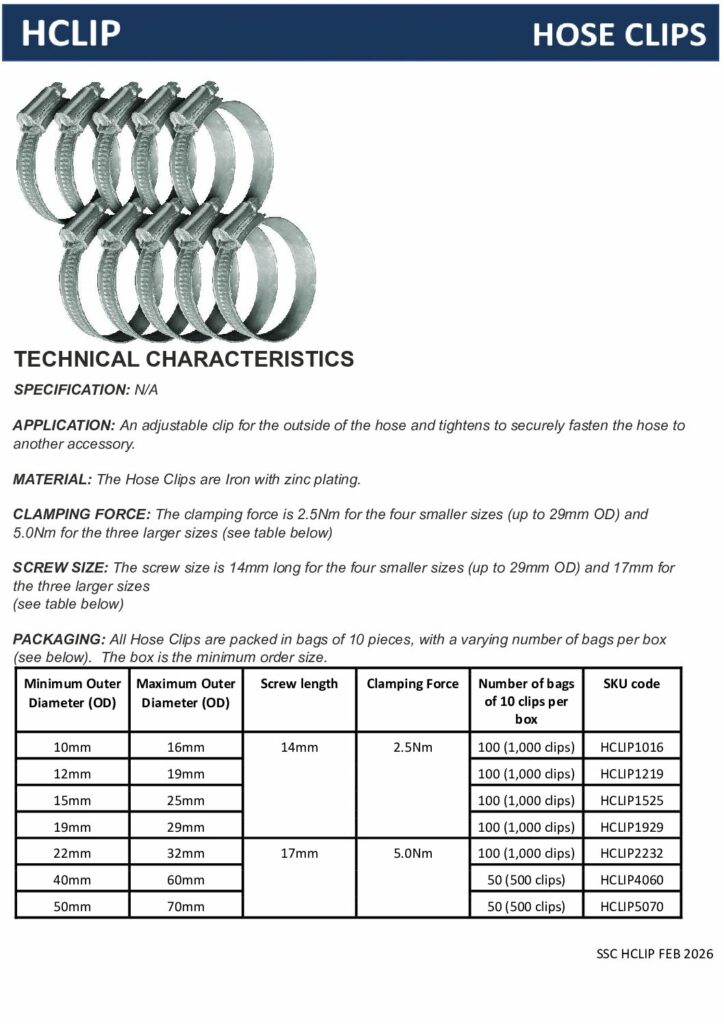

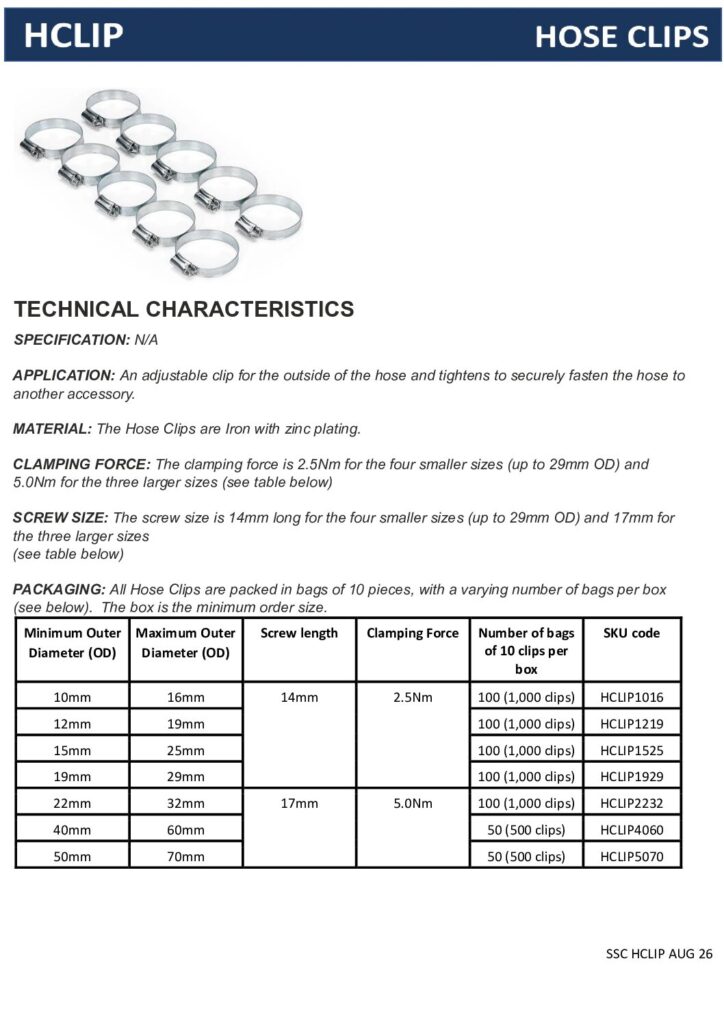

Hose Clips
SKU: HCLIP
Technical Characteristics
Specification
N/A
Application
An adjustable clip for the outside of the hose and tightens to securely fasten the hose to another accessory.
Material
The Hose Clips are Iron with zinc plating.
Clamping Force
The clamping force is 2.5Nm for the four smaller sizes (up to 29mm OD) and 5.0Nm for the three larger sizes (see sizes table)
| Minimum Outer Diameter (OD) | Maximum Outer Diameter (OD) | Screw Length | Clamping Force | Number of bags of 10 clips per box | SKU code |
| 10mm | 16mm | 14mm | 2.5Nm | 100 (1,000 clips) | HCLIP1016 |
| 12mm | 19mm | 14mm | 2.5Nm | 100 (1,000 clips) | HCLIP1219 |
| 15mm | 25mm | 14mm | 2.5Nm | 100 (1,000 clips) | HCLIP1525 |
| 19mm | 29mm | 14mm | 2.5Nm | 100 (1,000 clips) | HCLIP1929 |
| 22mm | 32mm | 17mm | 5.0Nm | 100 (1,000 clips) | HCLIP2232 |
| 40mm | 60mm | 17mm | 5.0Nm | 50 (500 clips) | HCLIP4060 |
| 50mm | 70mm | 17mm | 5.0Nm | 50 (500 clips) | HCLIP5070 |
Conversions shown are approximate and rounded.
Commodity Code
7307298090
