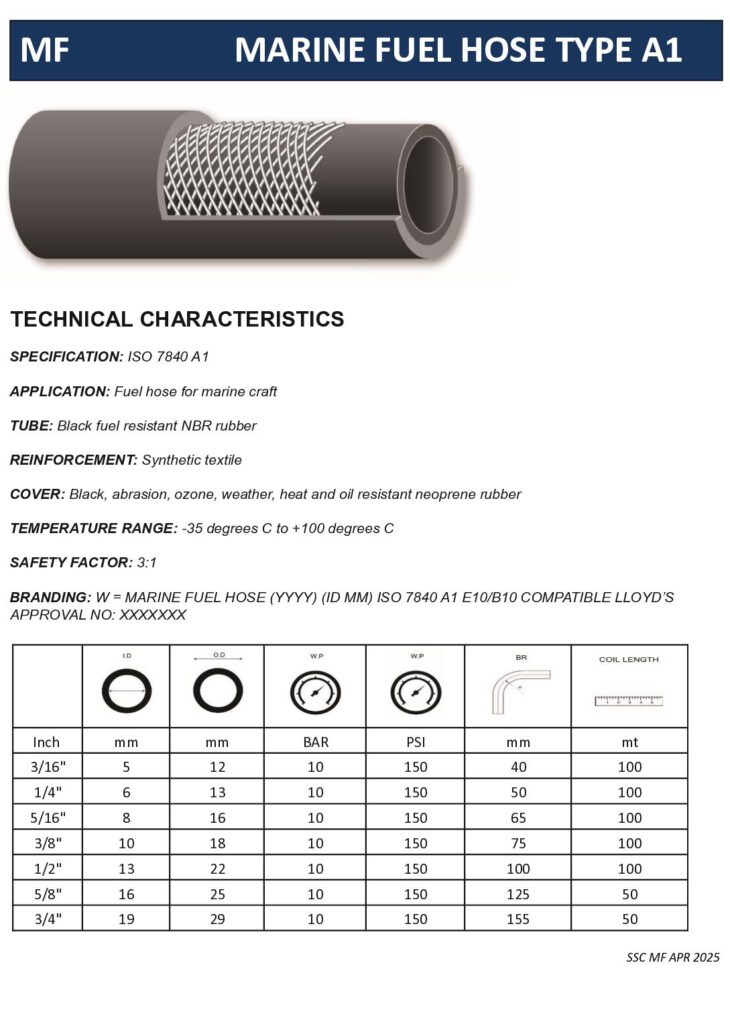

Marine Fuel Hose Type A1
SKU: MF
Technical Characteristics
Specification
ISO 7840 A1
Application
Fuel hose for marine craft
Tube
Black fuel resistant NBR rubber
Reinforcement
Synthetic textile
Cover
Black, abrasion, ozone, weather, heat and oil resistant neoprene rubber
Temperature Range
-35°C to +100°C
Safety Factor
3:1
Branding
W = MARINE FUEL HOSE (YYYY) (ID MM) ISO 7840 A1 E10/B10 COMPATIBLE LLOYD’S APPROVAL NO: XXXXXXX
Sizes
| Inch | Inner Diameter (ID) (mm)  | Outer Diameter (OD) (mm)  | Working Pressure (BAR)  | Working Pressure (PSI) | Bend Radius (BR) (mm)  | Coil Length (Metres)  |
|---|---|---|---|---|---|---|
| 3/16" | 5 | 12 | 10 | 150 | 40 | 100 |
| 1/4" | 6 | 13 | 10 | 150 | 50 | 100 |
| 5/16" | 8 | 16 | 10 | 150 | 65 | 100 |
| 3/8" | 10 | 18 | 10 | 150 | 75 | 100 |
| 1/2" | 13 | 22 | 10 | 150 | 100 | 100 |
| 5/8" | 16 | 25 | 10 | 150 | 125 | 50 |
| 3/4" | 19 | 29 | 10 | 150 | 155 | 50 |
Conversions shown are approximate and rounded.
